Product Name: stainless steel high pressure ferrule check valve

Product model: H91

Connection mode: thread, compression ferrule

Structural features: ferrule type at both ends

Product material: stainless steel 304 / 316

Thread standard: G, NPT, BSPT, BSP, DIN

Ferrule size: Ф6、Φ8、Ф10、Φ12、Ф14、Φ16、Ф18、Φ20、Ф22

Product pressure: ≤ 6.4 MPa

Operating temperature: ≤ 120 ℃

Medium used: water, oil, weak corrosive medium, etc

Product Description:

H91 stainless steel high-pressure ferrule check valve refers to a check valve connected by ferrule, and the opening and closing parts open or close automatically by medium flow and force to prevent medium backflow. The ferrule check valve is an automatic valve, which is mainly used on the pipeline with one-way flow of medium. The medium is only allowed to flow in one direction to prevent accidents.

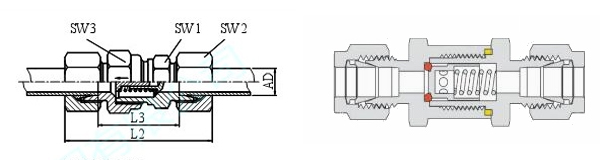

Structural drawing of h91 stainless steel high pressure ferrule check valve:

H91 stainless steel high pressure ferrule check valve parts material:

Part Name	Stainless steel
Nut	SS304 SS304L SS316 SS316L SS321
Dual card combination	SS304 SS304L SS316 SS316L SS321
Valve body	SS304 SS304L SS316 SS316L SS321
Valve seat	SS304 SS304L SS316 SS316L SS321
Nut	SS304 SS304L SS316 SS316L SS321
spring	SS304 SS304L SS316 SS316L SS321
Disc	SS304 SS304L SS316 SS316L SS321
Stem packing	PTFE
Collar	SS304 SS304L SS316 SS316L SS321
O-ring	fluororubber/FKM
